2.4" Inch TFT LCD Display QVGA 240x320 MCU With Resistive Touch Screen
A high-performance color display touch integrated module designed for embedded systems and industrial applications, featuring IPS technology for wide viewing angles and reliable resistive touch functionality.
Product Specifications
| Product |
2.4 Inch TFT Display |
Touch Screen |
Resistive Touch Panel (Customizable) |
| Resolution |
240*320 |
Cover Glass Dimension |
Customizable |
| Viewing Direction |
12:00 |
Interface |
MCU (Customizable) |
| Pin Number |
25 Pins (Customizable) |
Connection |
Soldering (Customizable) |
| Surface Luminance |
150 Cd/m² (Customizable) |
LED Lifetime |
40,000 Hours |
| Driver IC |
ST7789V |
Compliance |
REACH & RoHS Compliant |

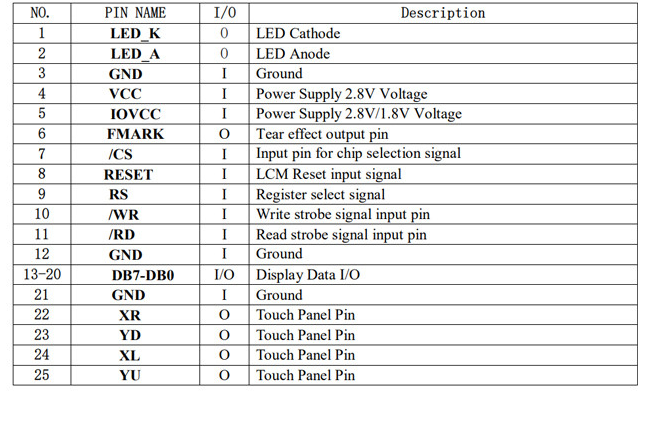

Technical Drawings
Product Core Features
This color display touch integrated module is engineered for embedded systems and industrial applications. It utilizes IPS (In-Plane Switching) technology to deliver full viewing angles of approximately 170° horizontally and vertically with minimal color shift when viewed from the side. The TFT active matrix drive provides a resolution of 240*320 pixels (QVGA vertically) and supports 65K/262K or 16.7 million colors.
The module includes a 4-wire resistive touch screen (typically using XPT2046 touch IC) that is pressure-triggered and operates reliably even with gloves or ordinary hard objects, offering strong environmental adaptability. Mainstream driver ICs include ST7789VI and ILI9341, with multiple interface options supporting SPI (3-wire/4-wire) and compatibility with MCU/8080 parallel interfaces. Power supply is typically 3.3V (some models with level conversion support 5V), and the white LED backlight features common brightness of 300-400 cd/m² with PWM adjustability.
Operating temperature ranges from -20℃ to 70℃, with a slim module thickness of 3-4mm and an effective display area of approximately 36.72*48.96 mm. Comprehensive driver libraries and development routines for Arduino, STM32, and Raspberry Pi ensure quick and easy integration.
Typical Applications
- Handheld detection/measurement equipment: Portable multimeters, temperature/humidity/gas detectors, tire pressure gauges
- Industrial control terminals: Small PLCs, frequency converters, machine tool operation panels, warehouse barcode scanners
- Maker and open-source hardware projects: Human-machine interfaces for Raspberry Pi/STM32, smart home gateways, 3D printer control panels
- Consumer electronics and IoT devices: Handheld POS machines, mini medical portable devices, in-vehicle small screens, smart home appliance remote controls
- Battery-powered portable devices: Outdoor weather stations, handheld walkie-talkies with SPI interface for low power consumption
