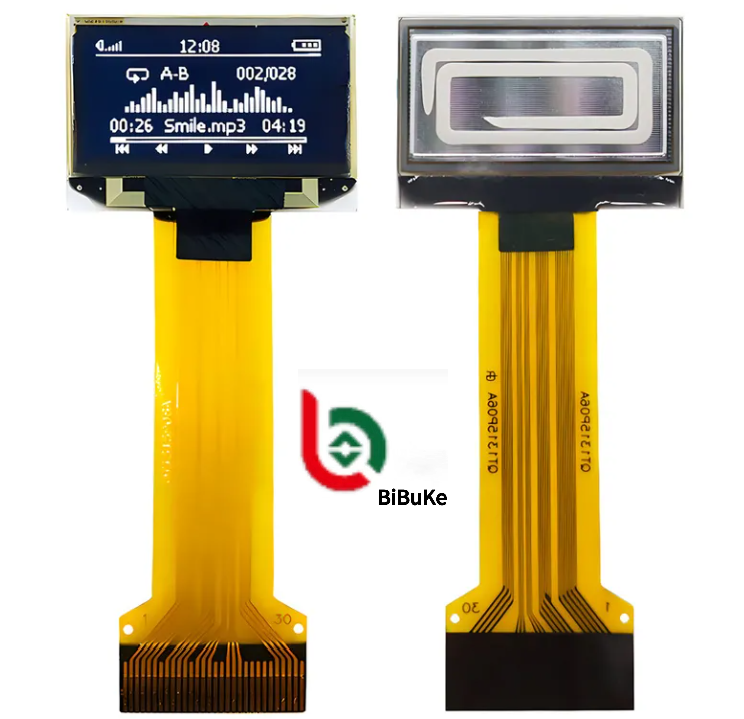

0.96 Inch 30 Pin ZIF Connector OLED Display Panel
High-resolution 128×64 dot matrix OLED display with SPI/I2C interface options, featuring ultra-thin design and ZIF connector for easy installation.
Product Specifications
| Product | 0.96 Inch OLED Display |
| Display Color | White, Blue, Blue/Yellow Dual Color |
| Number Of Pixels | 128×64 Pixels |
| Driver IC | SSD1315 Or Equivalent |
| Display Mode | Passive Matrix |
| Drive Duty | 1/64 Duty |
| Panel Size | 24.74 × 16.9 × 1.42 (mm) |
| Active Area | 21.74 × 10.86 (mm) |
| Pixel Pitch | 0.17 × 0.17 (mm) |
| Pixel Size | 0.15 × 0.154 (mm) |
| Interface | I2C, SPI Optional |
| Pin Number | 30 Pins (Can Be Customized) |
| Viewing Direction | All Viewing Angles |
| Connection | ZIF |
| Operating Temp. | -40°C to +70°C |
| Storage Temp. | -40°C to +85°C |
| Life Time | 50,000 Hours @60cd/m² |
Product Overview
Core Features & Structure
This single-color OLED dot matrix screen features COG (Chip On Glass) packaging with a 0.96-inch diagonal and 128×64 pixel resolution. The display utilizes SSD1306/SSD1315 driver ICs and supports 3.3V low-voltage power supply. The 30-pin ZIF (Zero Insertion Force) FPC connector eliminates soldering requirements, enabling quick installation and removal for mass production and maintenance applications.
Display Performance
OLED technology provides self-illumination without backlight, delivering exceptional contrast with pure black levels. The display offers wide viewing angles exceeding 160°, fast response times, and significantly lower power consumption compared to LCD alternatives. Available in single-color blue, white, or blue/yellow dual-color configurations for versatile graphic display applications.
Connection Advantages
ZIF connectors allow direct FPC cable insertion with secure locking mechanism, ensuring stable contact while eliminating short-circuit risks associated with manual soldering.
Primary Applications
- Portable & wearable devices: smart wristbands, sports watches, Bluetooth earphone cases, GPS locators, medical monitoring devices
- IoT & industrial control: sensor nodes, smart home panels, PLCs, device status indicators, environmental monitoring terminals
- Maker DIY & education: Arduino/ESP32 development board displays for electronic competitions and prototyping
- Consumer electronics: status displays for radios, MP3 players, handheld multimeters, and oscilloscopes
- Battery-powered devices: ultra-low power consumption ideal for outdoor and mobile applications
